Evaluation Kits

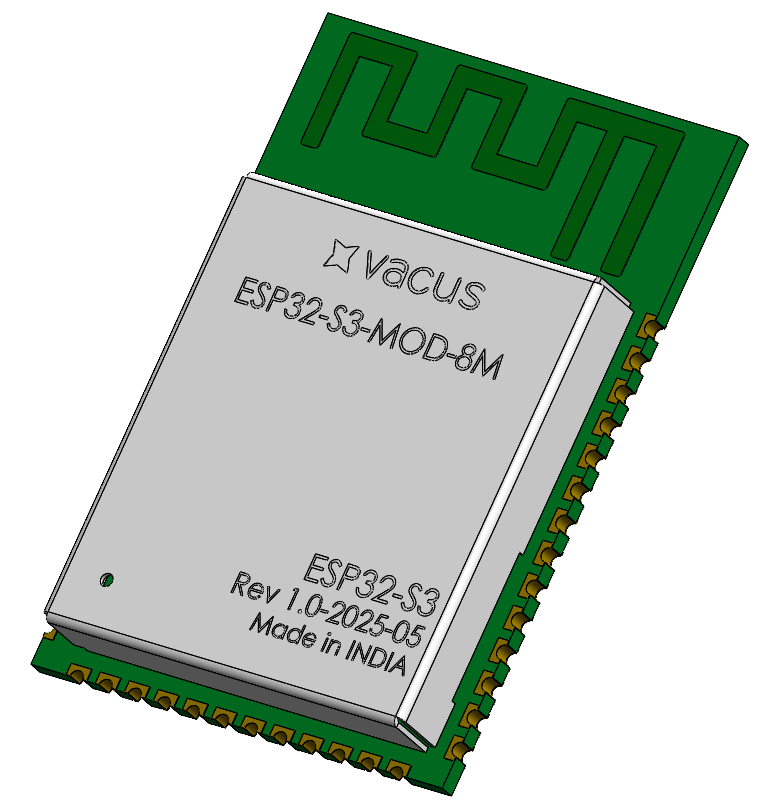

The ESP32-S3-MOD-8M is a compact dual-core Wi-Fi + Bluetooth 5 module with 8MB SPI flash, ideal for AIoT and smart devices.

• Dual-core Xtensa LX7 processor up to 240 MHz.
• 8MB SPI flash memory.
• Wi-Fi 802.11 b/g/n + Bluetooth 5 LE.
• Native USB 1.1 OTG support.
• Wide voltage (3.0V-3.6V), industrial temperature (-40 C to +85 C).

Buy now: https://robu.in/product/esp32-s3-mod-8m/

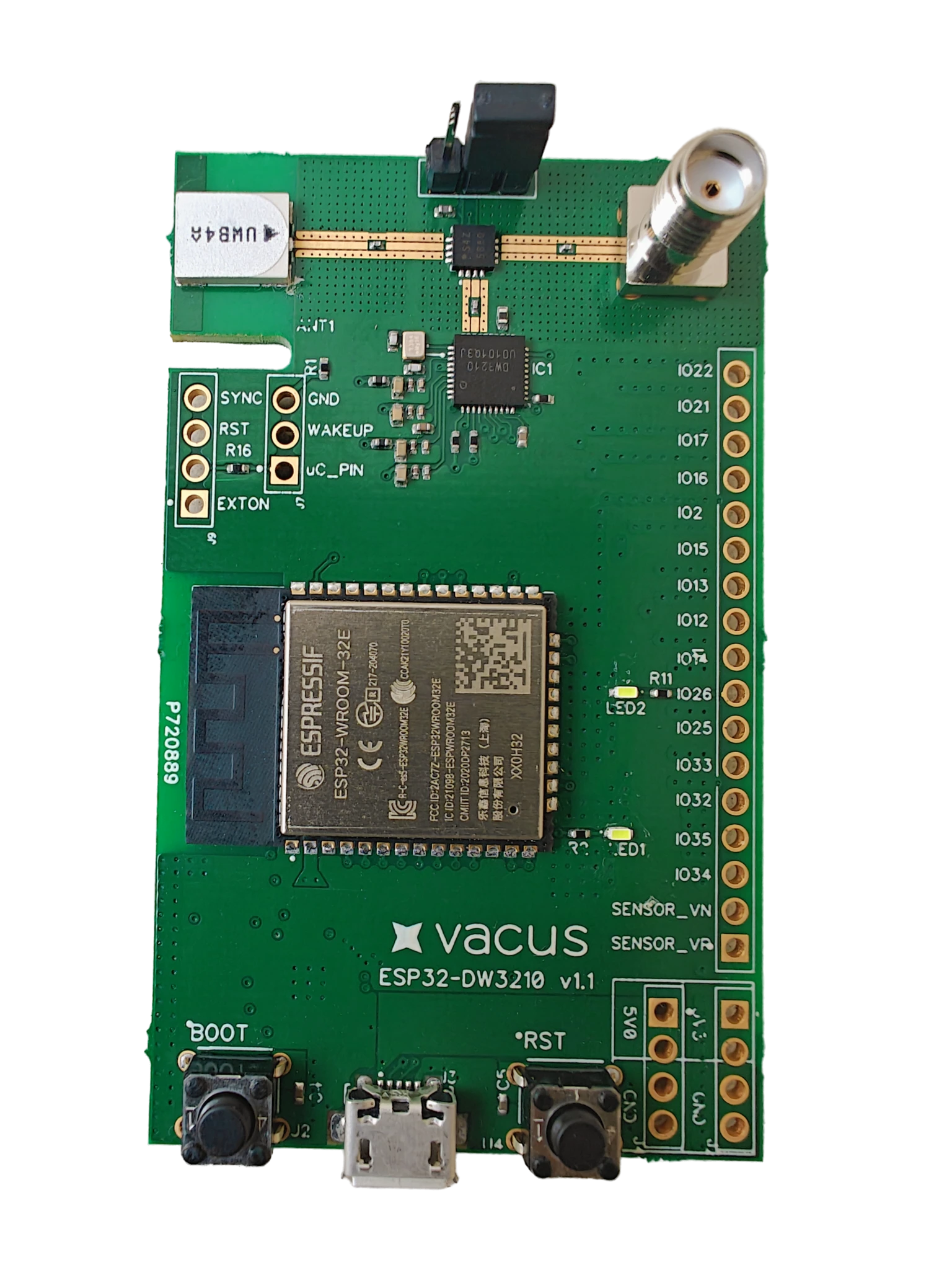

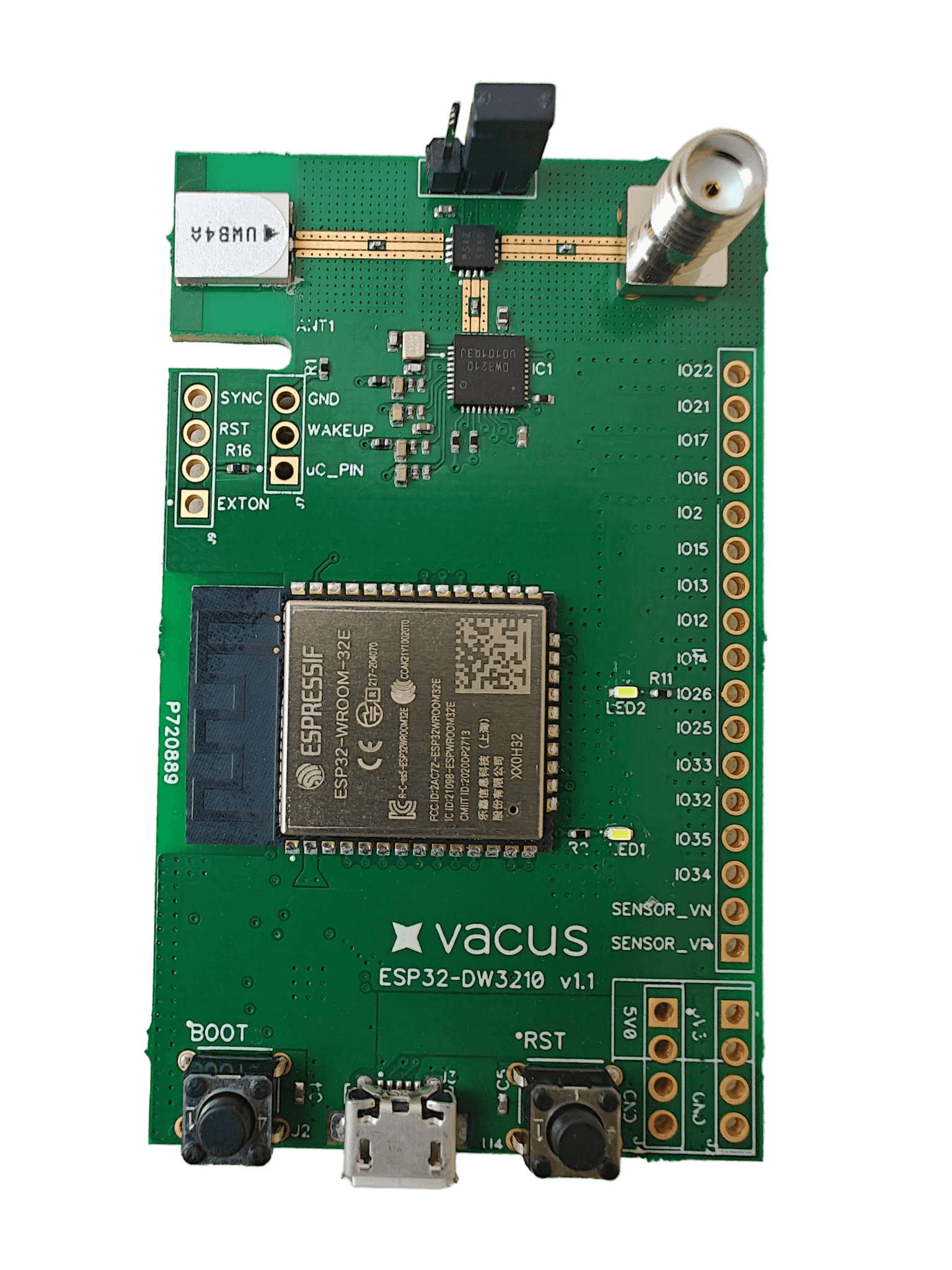

The ESP32-DW3210 UWB Evaluation Board integrates an ESP32 MCU with DW3210 UWB transceiver for precise indoor positioning and antenna path testing.

• Integrated ESP32 microcontroller for wireless communication and control.
• High-precision DW3210 UWB transceiver for ranging and positioning.
• SPDT RF switch for antenna path selection.
• Onboard UWB chip antenna for compact indoor use.
• SMA connector for high-gain external antenna support.

Buy now: https://robu.in/product/esp32-dw3210-uwb-evaluation-board/

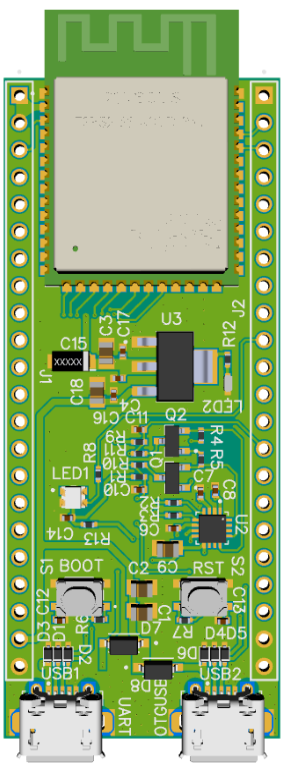

The Vacus ESP32-S3 development module supports UWB applications, Wi-Fi/BLE, USB OTG, and low-power prototyping for AIoT products.

• Dual USB ports (USB-to-UART + native USB OTG).
• ESP32-S3-MOD8M with 240 MHz dual-core MCU and high-speed computing.
• Boot and reset buttons for firmware flashing and system control.
• Onboard RGB LED for status indication.
• Low-power modes with deep-sleep current as low as ~10 uA.

Buy now: https://robu.in/product/vacus-esp32-s3-development-board/

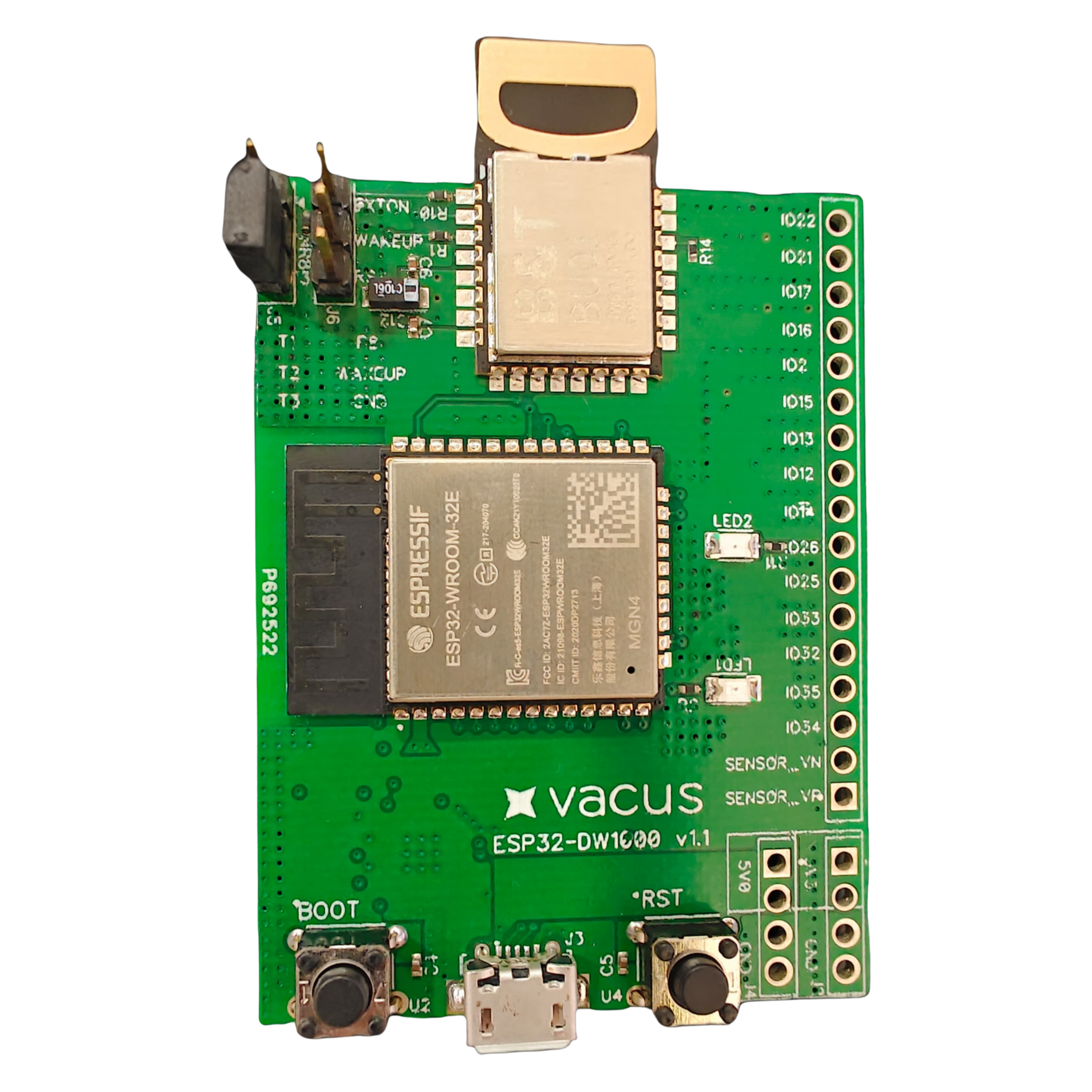

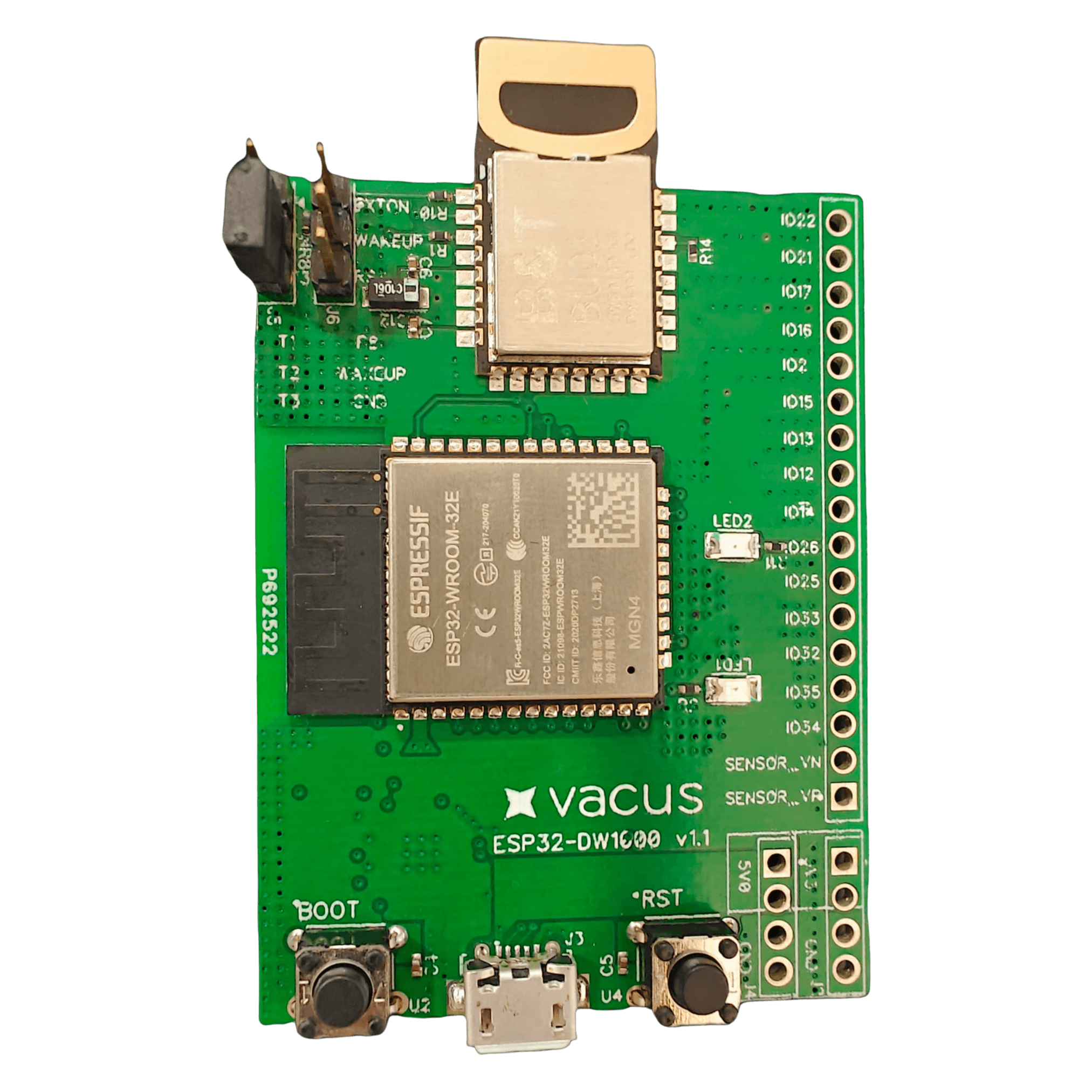

A ready-to-use evaluation board combining ESP32 and DW1000 for UWB-based ranging and positioning applications. Ideal for IoT developers and researchers building indoor localization systems.

• Combines ESP32-WROOM-32 and Decawave DW1000 for UWB-based indoor positioning.
• Ideal for asset tracking, indoor navigation, and UWB research.
• Features: Integrated UWB antenna, USB power, Wi-Fi + Bluetooth, 3.3V logic.
• Includes board, micro-USB cable (optional), quick start guide.

Buy now: https://robu.in/product/esp32-dw1000-evaluation-board

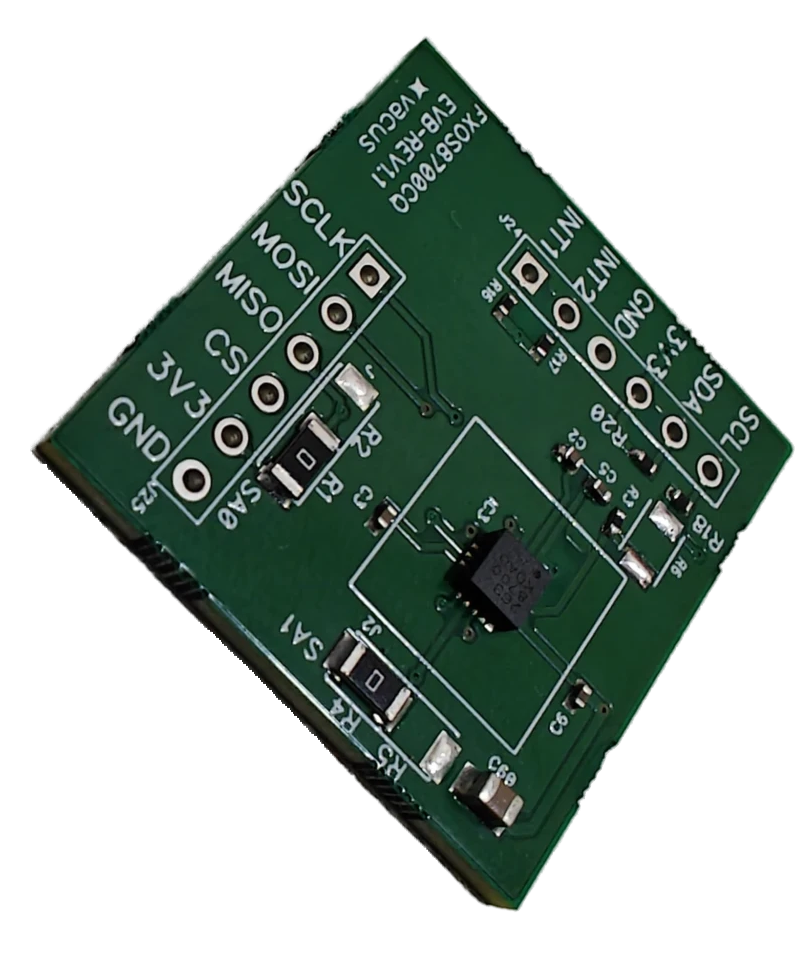

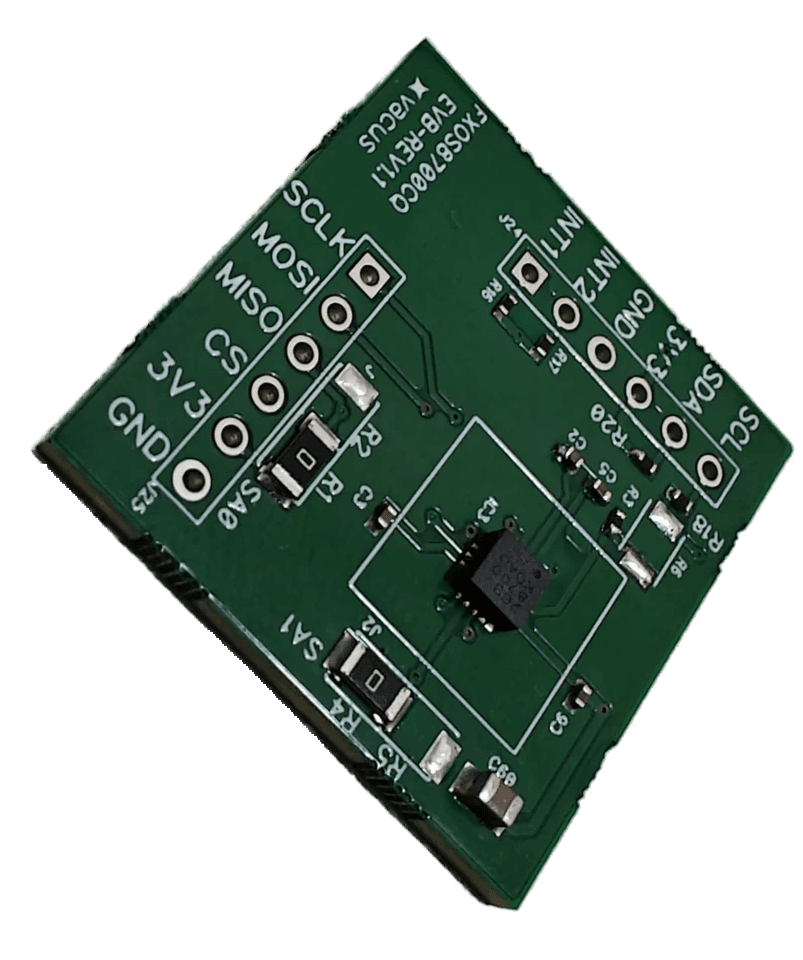

A compact evaluation board featuring NXP's FXOS8700CQ 6-axis sensor, combining a 3-axis accelerometer and 3-axis magnetometer for motion and orientation sensing applications.

• Features NXP's 6-axis sensor with 3-axis accelerometer + 3-axis magnetometer.
• Selectable +/-2g/4g/8g acceleration, +/-1200 uT magnetic range.
• Ideal for motion sensing, robotics, and guidance systems.
• Includes board, header pins, quick start guide.

Buy now: https://robu.in/product/fxos8700cq-6-axis-sensor-evaluation-board
